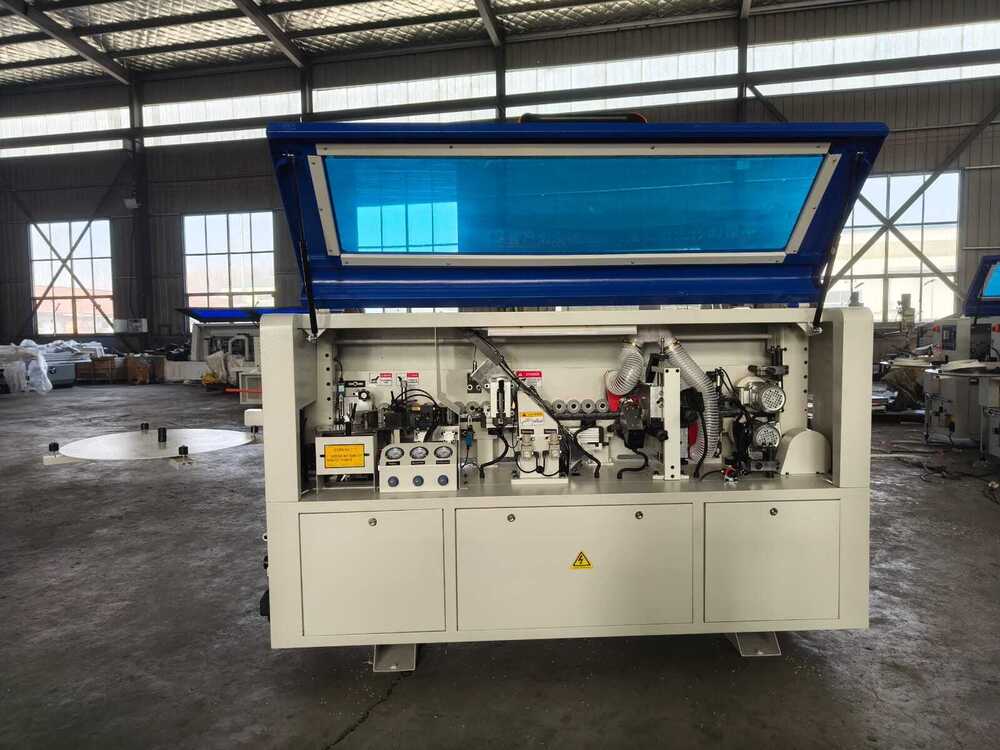

Automatic Edge Bander Machine

Automatic Edge Bander Machine
Automatic Edge Bander Machine
Automatic Edge Bander Machine
Automatic Edge Bander Machine
Automatic Edge Bander Machine

Automatic Edge Bander Machine Specification

  • Product Type
  • Woodworking Machine
  • Machine Type
  • Other
  • Machine Style
  • Other
  • Capacity
  • High Production
  • Voltage
  • 220 Watt (w)
  • Power
  • Electric
  • Automation
  • Semi Automatic
  • Motor
  • High-efficiency Industrial Motor
  • Speed
  • 12-20 m/min
  • Dimension (L*W*H)
  • 3800 mm x 900 mm x 1600 mm
  • Weight
  • 1200 kg
  • Color
  • White/Blue
  • Warranty
  • 1 year
  • Workpiece Thickness
  • 10-60 mm
  • Noise Level
  • <80 dB
  • Pressure System
  • Pneumatic
  • Dust Extraction Port
  • Available
  • Application
  • Cabinet, Furniture Edge Banding
  • Minimum Panel Size
  • 150 mm x 60 mm
  • Glue Pot Capacity
  • 2.5 L
  • Functions
  • Pre-milling, Gluing, End Cutting, Rough Trimming, Fine Trimming, Scraping, Buffing
  • Edge Tape Thickness
  • 0.4-3 mm
  • Control Panel
  • Digital PLC Touch Screen
  • Max Panel Width
  • 2400 mm
  • Heating Time
  • 15 minutes
  • Feeding Speed
  • Controllable, Up to 20 m/min


Automatic Edge Bander Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash in Advance (CID), Cheque
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa


About Automatic Edge Bander Machine

We Are Supply Automatic Edge Bander Machine


  • Specifications following
  • Gluing Edge cutEnd TrimmingFine TrimmingScrapingBuffing
  • With PLC Touch screen DELTA
  • Delta HMI
  • Thickness of the wood 1045mm Edge band thickness 043mm
  • Min width of the wood80mm
  • Min length of the wood160mm
  • Feeding speed 13mmmin
  • Air pressure 06Mpa
  • Power 380V50Hz3Phase
  • Total Power 8KW
  • The glue temperature 180200degree



Precision and Performance for High Production

Achieve consistently high-quality edge banding thanks to automated processes including pre-milling, gluing, end cutting, multiple trimming stages, and buffing. The machine's digital PLC touch screen allows for simple adjustments, while its industrial motor ensures reliable and efficient operation for demanding manufacturing environments.


Versatile Capacity for Various Panel Sizes

This edge bander is engineered to handle a broad spectrum of panel sizes, with a minimum size of 150 mm x 60 mm and a maximum width of 2400 mm. The edge tape thickness range of 0.4-3 mm makes it suitable for diverse edge finishing requirements in furniture and cabinet production.

FAQ's of Automatic Edge Bander Machine:


Q: How does the Automatic Edge Bander streamline the edge banding process?

A: The machine integrates pre-milling, precise gluing, cutting, trimming, scraping, and buffing into one seamless operation. Its high-speed, automatic system reduces manual intervention, ensuring faster production with consistent, professional-quality results.

Q: What are the benefits of using this edge bander in furniture or cabinet production?

A: Using the Automatic Edge Bander ensures superior edge adhesion and finish quality, increases overall productivity, and reduces labor costs. Its automation and high production capacity make it ideal for both small and large-scale manufacturing operations.

Q: When is the edge bander ready for operation after startup?

A: After switching on, the machine's glue pot requires about 15 minutes to reach optimal temperature, allowing the edge bander to start working efficiently and ensure strong adhesive bonding.

Q: Where is dust extraction managed during the banding process?

A: A built-in dust extraction port is provided to manage debris and maintain clean working conditions throughout the edge banding process, thereby prolonging machine lifespan and ensuring safety.

Q: What thickness and sizes of workpieces can this machine handle?

A: The edge bander accommodates workpieces with thicknesses from 10 to 60 mm, edge tapes of 0.4-3 mm, and panels ranging from 150 mm x 60 mm up to a width of 2400 mm, offering flexibility for various project requirements.

Q: How is the machine operated and controlled?

A: Operation is straightforward with a digital PLC touch screen interface, providing operators with intuitive controls to adjust speed, functions, and other key settings for efficient and precise edge banding.

Q: What makes this edge bander suitable for industrial environments?

A: Its sturdy build, high-efficiency motor, fast feeding speed, and automation features support high-volume continuous use, making it ideal for demanding industrial scenarios in furniture and cabinet manufacturing.
